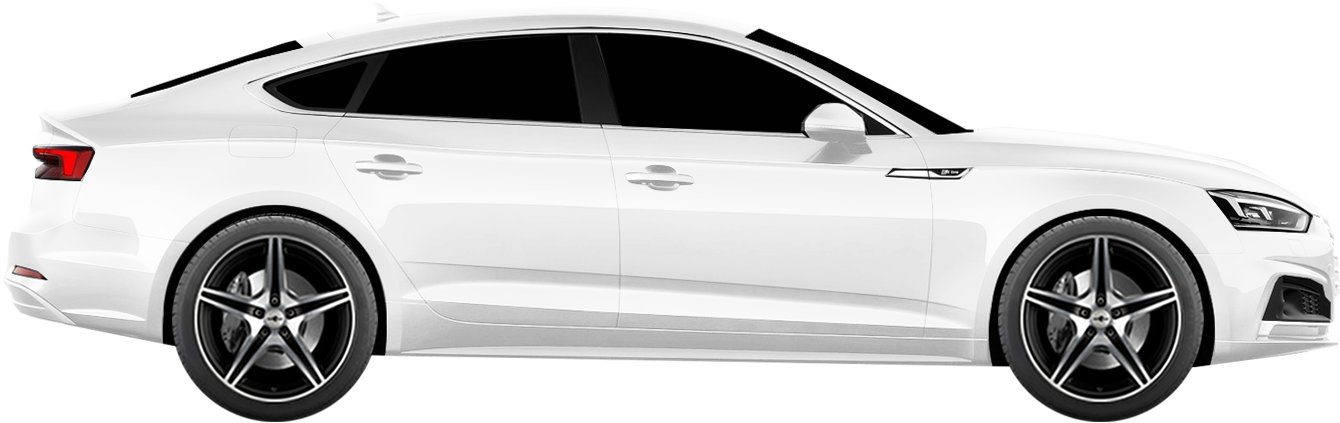

Battery for AUDI A5 Sportback (F5A)
Compatible Car Batteries for AUDI A5 Sportback (F5A)
Model years: since 09.2016. Car body type: Hatchback
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| AUDI A5 Sportback (F5A) 2.0 TFSI | since 11.2016 |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
| AUDI A5 Sportback (F5A) 2.0 TFSI quattro | since 09.2016 |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
| AUDI A5 Sportback (F5A) S5 quattro | since 09.2016 |
12.4” x 6.89” x 7.48” 353 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 353 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 353 x 175 x 190 mm |
| AUDI A5 Sportback (F5A) 2.0 TDI | since 09.2016 |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
| AUDI A5 Sportback (F5A) 2.0 TDI quattro | since 10.2016 |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
| AUDI A5 Sportback (F5A) 3.0 TDI quattro | since 09.2016 |
12.4” x 6.89” x 7.48” 353 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 353 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 353 x 175 x 190 mm |
| AUDI A5 Sportback (F5A) 2.0 TFSI quattro | since 09.2016 |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
12.4” x 6.89” x 7.48” 315 x 175 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| AUDI A5 Sportback (F5A) 2.0 TFSI | since 11.2016 | 800 | 800 | 800 |
| AUDI A5 Sportback (F5A) 2.0 TFSI quattro | since 09.2016 | 800 | 800 | 800 |
| AUDI A5 Sportback (F5A) S5 quattro | since 09.2016 | 850 | 850 | 850 |
| AUDI A5 Sportback (F5A) 2.0 TDI | since 09.2016 | 800 | 800 | 800 |
| AUDI A5 Sportback (F5A) 2.0 TDI quattro | since 10.2016 | 800 | 800 | 800 |
| AUDI A5 Sportback (F5A) 3.0 TDI quattro | since 09.2016 | 850 | 850 | 850 |
| AUDI A5 Sportback (F5A) 2.0 TFSI quattro | since 09.2016 | 800 | 800 | 800 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| AUDI A5 Sportback (F5A) 2.0 TFSI | since 11.2016 | 80 | 80 | 80 |
| AUDI A5 Sportback (F5A) 2.0 TFSI quattro | since 09.2016 | 80 | 80 | 80 |
| AUDI A5 Sportback (F5A) S5 quattro | since 09.2016 | 95 | 95 | 95 |
| AUDI A5 Sportback (F5A) 2.0 TDI | since 09.2016 | 80 | 80 | 80 |
| AUDI A5 Sportback (F5A) 2.0 TDI quattro | since 10.2016 | 80 | 80 | 80 |
| AUDI A5 Sportback (F5A) 3.0 TDI quattro | since 09.2016 | 95 | 95 | 95 |
| AUDI A5 Sportback (F5A) 2.0 TFSI quattro | since 09.2016 | 80 | 80 | 80 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: DETA Battery Code: DK800 Voltage: 12 V Battery Capacity: 80 AH Height: 190 Width: 175 Length: 315 Cold Cranking Amps (CCA): 800 A Post Positions: 0 Hold-down Type: B13 |  |
Battery Brand: EXIDE Battery Code: EK800 Voltage: 12 V Battery Capacity: 80 AH Height: 190 Width: 175 Length: 315 Cold Cranking Amps (CCA): 800 A Post Positions: 0 Hold-down Type: B13 |  |
Battery Brand: TUDOR Battery Code: TK800 Hold-down Type: B13 Voltage: 12 V Battery Capacity: 80 AH Height: 190 Width: 175 Length: 315 Cold Cranking Amps (CCA): 800 A Post Positions: 0 |  |
Battery Brand: DETA Battery Code: DK950 Length: 353 Cold Cranking Amps (CCA): 850 A Voltage: 12 V Battery Capacity: 95 AH Height: 190 Width: 175 Post Positions: 0 Hold-down Type: B13 |  |
Battery Brand: EXIDE Battery Code: EK950 Voltage: 12 V Battery Capacity: 95 AH Height: 190 Width: 175 Length: 353 Cold Cranking Amps (CCA): 850 A Post Positions: 0 Hold-down Type: B13 Terminal Type: EN |  |
Battery Brand: TUDOR Battery Code: TK950 Voltage: 12 V Battery Capacity: 95 AH Height: 190 Width: 175 Length: 353 Cold Cranking Amps (CCA): 850 A Post Positions: 0 Hold-down Type: B13 |  |
