Battery for AUDI 100 Avant (4A, C4)
Compatible Car Batteries for AUDI 100 Avant (4A, C4)
Model years: 12.1990 - 07.1994. Car body type: Station Wagon
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| AUDI 100 Avant (4A, C4) 2.5 TDI | 12.1990 - 07.1994 |
13.9” x 6.89” x 7.48” 353 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 277 x 174 x 190 mm |
10.91” x 6.85” x 6.89” 277 x 174 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.0 E | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 354 x 174 x 190 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.0 E | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 315 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) S4 Turbo quattro | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 354 x 174 x 190 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.6 | 03.1992 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 315 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.3 E | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.8 E | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 354 x 174 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 208 x 174 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.3 E quattro | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.6 quattro | 07.1992 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 315 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.8 E quattro | 09.1991 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 310 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 208 x 174 x 175 mm |
| AUDI 100 Avant (4A, C4) S4 V8 quattro | 10.1992 - 07.1994 |
13.9” x 6.89” x 7.48” 353 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.0 E quattro | 12.1990 - 07.1992 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 315 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.4 D | 12.1990 - 07.1994 |
13.9” x 6.89” x 7.48” 353 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 190 mm |
10.91” x 6.85” x 6.89” 277 x 174 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.6 | 07.1993 - 07.1994 |
13.9” x 6.89” x 7.48” 513 x 226 x 223 mm |
10.91” x 6.85” x 7.48” 513 x 223 x 223 mm |
10.91” x 6.85” x 6.89” 512 x 223 x 220 mm |
| AUDI 100 Avant (4A, C4) 2.0 E 16V | 07.1992 - 07.1994 |
13.9” x 6.89” x 7.48” 354 x 174 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 175 mm |
10.91” x 6.85” x 6.89” 242 x 175 x 175 mm |
| AUDI 100 Avant (4A, C4) 2.0 E 16V quattro | 07.1992 - 07.1994 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.91” x 6.85” x 7.48” 518 x 279 x 240 mm |
10.91” x 6.85” x 6.89” 516 x 272 x 235 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| AUDI 100 Avant (4A, C4) 2.5 TDI | 12.1990 - 07.1994 | 900 | 700 | 480 |
| AUDI 100 Avant (4A, C4) 2.0 E | 09.1991 - 07.1994 | 1150 | 815 | 480 |
| AUDI 100 Avant (4A, C4) 2.0 E | 09.1991 - 07.1994 | 1150 | 800 | 480 |
| AUDI 100 Avant (4A, C4) S4 Turbo quattro | 09.1991 - 07.1994 | 1150 | 815 | 480 |
| AUDI 100 Avant (4A, C4) 2.6 | 03.1992 - 07.1994 | 1150 | 800 | 480 |
| AUDI 100 Avant (4A, C4) 2.3 E | 09.1991 - 07.1994 | 1150 | 780 | 480 |
| AUDI 100 Avant (4A, C4) 2.8 E | 09.1991 - 07.1994 | 850 | 680 | 360 |
| AUDI 100 Avant (4A, C4) 2.3 E quattro | 09.1991 - 07.1994 | 1150 | 780 | 480 |
| AUDI 100 Avant (4A, C4) 2.6 quattro | 07.1992 - 07.1994 | 1150 | 800 | 480 |
| AUDI 100 Avant (4A, C4) 2.8 E quattro | 09.1991 - 07.1994 | 1150 | 780 | 360 |
| AUDI 100 Avant (4A, C4) S4 V8 quattro | 10.1992 - 07.1994 | 900 | 680 | 480 |
| AUDI 100 Avant (4A, C4) 2.0 E quattro | 12.1990 - 07.1992 | 1150 | 800 | 500 |
| AUDI 100 Avant (4A, C4) 2.4 D | 12.1990 - 07.1994 | 900 | 700 | 480 |
| AUDI 100 Avant (4A, C4) 2.6 | 07.1993 - 07.1994 | 1150 | 1000 | 900 |
| AUDI 100 Avant (4A, C4) 2.0 E 16V | 07.1992 - 07.1994 | 850 | 680 | 480 |
| AUDI 100 Avant (4A, C4) 2.0 E 16V quattro | 07.1992 - 07.1994 | 1450 | 1200 | 1100 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| AUDI 100 Avant (4A, C4) 2.5 TDI | 12.1990 - 07.1994 | 100 | 74 | 65 |
| AUDI 100 Avant (4A, C4) 2.0 E | 09.1991 - 07.1994 | 200 | 100 | 54 |
| AUDI 100 Avant (4A, C4) 2.0 E | 09.1991 - 07.1994 | 200 | 85 | 54 |
| AUDI 100 Avant (4A, C4) S4 Turbo quattro | 09.1991 - 07.1994 | 200 | 85 | 54 |
| AUDI 100 Avant (4A, C4) 2.6 | 03.1992 - 07.1994 | 200 | 85 | 54 |
| AUDI 100 Avant (4A, C4) 2.3 E | 09.1991 - 07.1994 | 200 | 78 | 54 |
| AUDI 100 Avant (4A, C4) 2.8 E | 09.1991 - 07.1994 | 100 | 70 | 44 |
| AUDI 100 Avant (4A, C4) 2.3 E quattro | 09.1991 - 07.1994 | 200 | 77 | 54 |
| AUDI 100 Avant (4A, C4) 2.6 quattro | 07.1992 - 07.1994 | 200 | 85 | 54 |
| AUDI 100 Avant (4A, C4) 2.8 E quattro | 09.1991 - 07.1994 | 200 | 78 | 44 |
| AUDI 100 Avant (4A, C4) S4 V8 quattro | 10.1992 - 07.1994 | 100 | 72 | 54 |
| AUDI 100 Avant (4A, C4) 2.0 E quattro | 12.1990 - 07.1992 | 200 | 85 | 54 |
| AUDI 100 Avant (4A, C4) 2.4 D | 12.1990 - 07.1994 | 100 | 73 | 65 |
| AUDI 100 Avant (4A, C4) 2.6 | 07.1993 - 07.1994 | 200 | 180 | 155 |
| AUDI 100 Avant (4A, C4) 2.0 E 16V | 07.1992 - 07.1994 | 100 | 70 | 54 |
| AUDI 100 Avant (4A, C4) 2.0 E 16V quattro | 07.1992 - 07.1994 | 235 | 230 | 225 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: NPS Battery Code: U540L59B Length: 354 Width: 174 Height: 190 Voltage: 6 V Battery Capacity: 100 AH Cold Cranking Amps (CCA): 850 A |  |

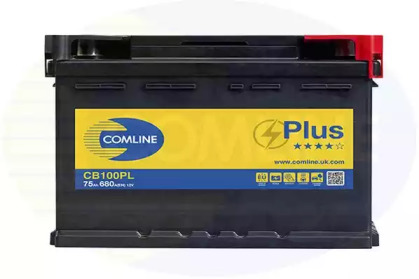

Battery Brand: COMLINE Battery Code: CB100PL Hold-down Type: B3/B4 Voltage: 12 V Cold Cranking Amps (CCA): 680 A Battery Capacity: 75 AH Post Positions: 0 Filled Weight: 16.5 kg Length: 278 Width: 175 Height: 190 |  |
Battery Brand: NPS Battery Code: U540L37B Length: 277 Width: 174 Height: 175 Voltage: 12 V Battery Capacity: 68 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |
Battery Brand: DETA Battery Code: DF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 226 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B0 |  |
Battery Brand: VARTA Battery Code: 5774000783162 Voltage: 12 V Battery Capacity: 77 AH Cold Cranking Amps (CCA): 780 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |
Battery Brand: VARTA Battery Code: 570901076D852 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |
Battery Brand: TUDOR Battery Code: TF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: VMF Battery Code: AGM570760 Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 174 Length: 277 Cold Cranking Amps (CCA): 760 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 S30 070 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 640 A Length: 278 Width: 175 Height: 175 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L36B Length: 208 Width: 174 Height: 175 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA) DIN: 220 A Cold Cranking Amps (CCA): 360 A |  |
Battery Brand: COMLINE Battery Code: CB065PL Hold-down Type: B3/B4 Voltage: 12 V Cold Cranking Amps (CCA): 480 A Battery Capacity: 55 AH Post Positions: 0 Filled Weight: 13.1 kg Length: 242 Width: 175 Height: 175 |  |

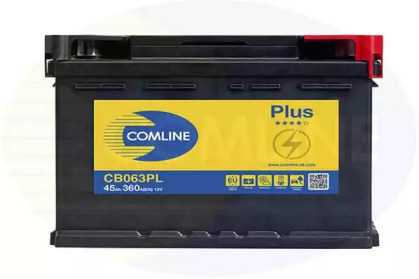

Battery Brand: COMLINE Battery Code: CB063PL Hold-down Type: B3/B4 Voltage: 12 V Cold Cranking Amps (CCA): 360 A Battery Capacity: 45 AH Post Positions: 0 Filled Weight: 11.1 kg Length: 207 Width: 175 Height: 175 |  |
Battery Brand: EXIDE Battery Code: EB712 Voltage: 12 V Battery Capacity: 71 AH Cold Cranking Amps (CCA): 670 A Length: 278 Width: 175 Height: 175 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: OPEN PARTS Battery Code: BT060L2B.00 Battery Capacity: 60 AH Voltage: 12 V Cold Cranking Amps (CCA): 500 A Length: 242 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 070 Voltage: 12 V Battery Capacity: 72 AH Cold Cranking Amps (CCA): 680 A Length: 278 Width: 175 Height: 175 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 680108100A722 Voltage: 12 V Battery Capacity: 180 AH Cold Cranking Amps (CCA): 1000 A Post Positions: 3 Terminal Type: 1 Hold-down Type: B00 Length: 513 Width: 223 Height: 223 Battery Property: Heavy Duty (extended cycle and vibration proof) |  |
Battery Brand: VMF Battery Code: 64317 Voltage: 12 V Battery Capacity: 155 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 900 A Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: EXIDE Battery Code: EF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
